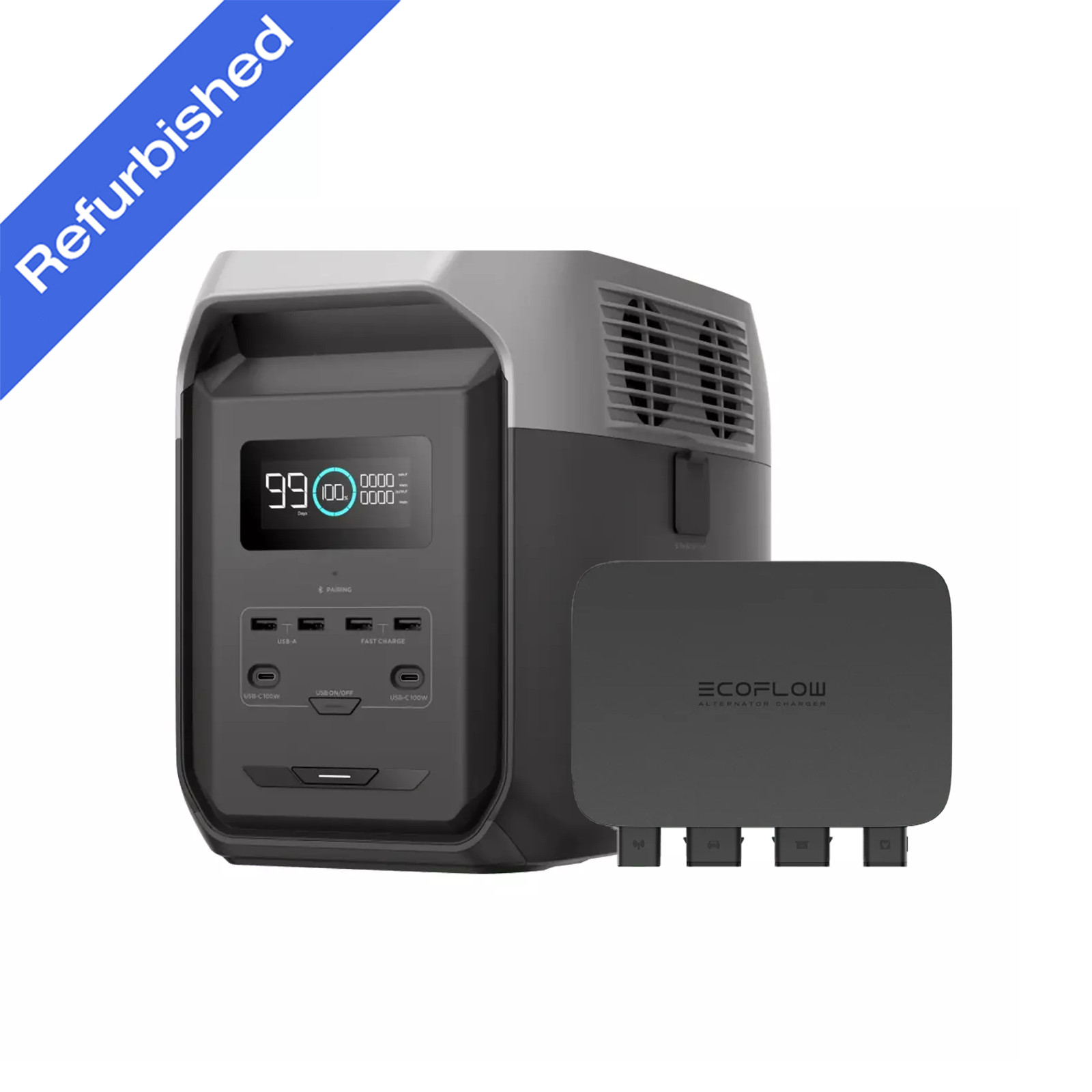

EcoFlow 800W Alternator Charger with Power Station Certified

Feature：

• [8× Faster Than Cigarette Lighter Charger] The 800W Alternator Charger tops up a portable power station by 1kWh on an 75 minutes drive. Charge with excess alternator energy so you can power your essential appliances, such as phones, coffee makers and lights when you're on the go.
• [3-in-1 Charger, Maintainer and Jump Starter] Three integrated features that charge your portable power station, keep your vehicle battery in peak condition and acts as a jump starter when you need it most.
• [Safe Charging & Vehicle Protection] By using GaN technology the DC-DC Charger converts more electricity without any risk of overheating even when charging at high speeds. The charger protects your vehicle against reverse polarity, overcurrent, short circuit, over and under voltage. Includes a 2-year service.
• [Easy-to-Install System] Transform your overlanding and vanlife experience with our plug-and-play portable power station. Perfect for supplementing your 12V RV house battery, and extending your runtime. It's not just for use in your van, our compact and lightweight power stations can be taken off-grid and used to power the outdoors.
• [Access the EcoFlow App Anywhere] Easily view your vehicle's energy usage in real-time, including power consumption and charging status, anywhere. Monitor and manage your entire vehicle, from temperature to appliance power.

STEP 1：Connect 800W Alternator Charger to battery to enjoy a carefree power experience during journey   STEP 2：Connect the fuse cable to the vehicle battery on the other end. STEP 3：Connect the black cable to the chassis terminal. STEP 4：Thread the other end of the input cable through the car body towards the charger. STEP 5&6：Plug the other side of the input cable into charger and the output cable of the charger to the PPS. Compatible with EcoFlow Portable Power Stations

What's in the box

Specs

Model

EF-FC-301-1

Net Weight

5.1 lb (2.3 kg)

Dimensions (W × D × H)

9.5×7.6×1.4 in

(242×194×35 mm)

Wi-Fi

Frequency: 2412MHz-2472MHz

Maximum output power: <20dBm

Bluetooth

Frequency: 2402MHz-2480MHz

Maximum output power: <10dBm

Charging Mode

Input: 11V-31V, 76A Max.

Output: 40V-60V, 800W Max.

Battery Maintenance Mode

Input: 40V-60V, 3A Max.

Output: 13.8V/27.6V, 100W Max.

Reverse Charging Mode

Input: 40V-60V, 21A Max.

Output: 13.8V/27.6V, 800W Max.

Fuse's Rated Current

125A

Protection Type

Reverse polarity protection

Overcurrent protection

Short circuit protection

Overvoltage protection

Undervoltage protection

Operating Temperature

–4℉ to 140℉ (–20℃ to 60℃)

Storage Temperature

–22℉ to 158℉ (–30℃ to 70℃)

Operating Humidity

≤95%

Storage Humidity

≤95%
